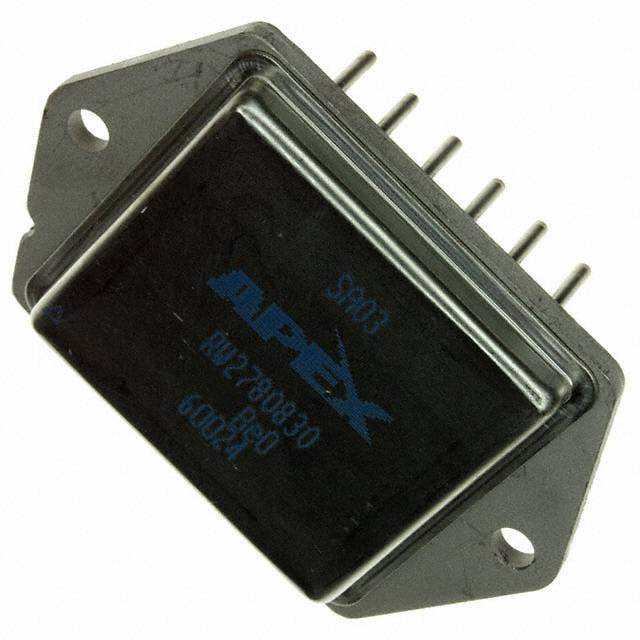

| Manufacturer Part Number : | SA03 |
|---|---|
| RoHs Status : | Contains lead / RoHS non-compliant |
| Manufacturer/Brand : | Apex Microtechnology |
| Stock Condition : | 4 pcs Stock |
| Description : | IC MOTOR DRIVER PAR 12DIP |
| Ship From : | Hong Kong |
| Datasheets : | SA03.pdf |
| Shipment Way : | DHL/Fedex/TNT/UPS/EMS |
| Part No. | SA03 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | IC MOTOR DRIVER PAR 12DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4 pcs |
| Datasheets | SA03.pdf |
| Voltage - Supply | 14 V ~ 16 V |
| Voltage - Load | 16 V ~ 100 V |
| Technology | Power MOSFET |
| Supplier Device Package | 12-PowerDip |
| Series | Apex Precision Power® |
| Rds On (Typ) | 160 mOhm (Max) |
| Packaging | Tube |
| Package / Case | 12-PowerDIP, Module |
| Output Configuration | Half Bridge (2) |
| Other Names | 598-1452 598-1989 598-1989-ND SA03-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Interface | PWM |
| Features | - |
| Fault Protection | Current Limiting |
| Detailed Description | Half Bridge (2) Driver DC Motors, Piezo Devices Power MOSFET 12-PowerDip |
| Current - Peak Output | 40A |
| Current - Output / Channel | 30A |
| Base Part Number | SA* |
| Applications | DC Motors, Piezo Devices |
