HomeProductsConnectors, InterconnectsCircular ConnectorsW5280-11SG-P-521

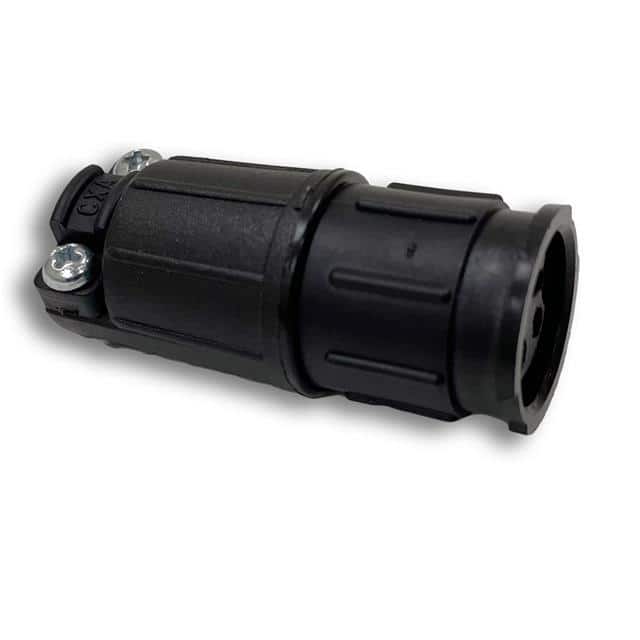

Conxall/Switchcraft W5280-11SG-P-521 Image Image may be representation.
See specs for product details.

W5280-11SG-P-521

Manufacturer Part Number : W5280-11SG-P-521
RoHs Status : ROHS3 Compliant
Manufacturer/Brand : Conxall/Switchcraft
Stock Condition : In stock
Description : MULTI-CON-X INSTA-CLICK WR INLN
Ship From : Hong Kong
Datasheets : W5280-11SG-P-521.pdf
Shipment Way : DHL/Fedex/TNT/UPS/EMS

Request Quote

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@rxicsource.com.
Quantity
Target Price(USD)
Company Name:
Contact Name:
Your Email:
Phone:
Message:
Company Type:
  • Verify:
Part No. W5280-11SG-P-521
Manufacturer Corcom Filters / TE Connectivity
Description MULTI-CON-X INSTA-CLICK WR INLN
Lead Free Status / RoHS Status ROHS3 Compliant
Quantity Available In stock
Datasheets W5280-11SG-P-521.pdf
Voltage Rating 600VAC/DC
Termination Crimp
Shielding Unshielded
Shell Size, MIL -
Shell Size - Insert -
Shell Material Thermoplastic
Shell Finish -
Series Multi-Con-X®, Insta-Click™
Primary Material Plastic
Package Bulk
Orientation Keyed
Operating Temperature -40°C ~ 85°C
Number of Positions 11
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Material Flammability Rating UL94 HB
Insert Material Thermoplastic
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, UV Resistant
Fastening Type Bayonet Lock
Current Rating (Amps) Varies by Wire Gauge
Contact Material Copper Alloy
Contact Finish Thickness - Mating -
Contact Finish - Mating Gold
Connector Type Plug, Female Sockets
Color Black
Cable Opening 0.210" ~ 0.230" (5.33mm ~ 5.84mm)
Backshell Material, Plating Thermoplastic
Applications -
