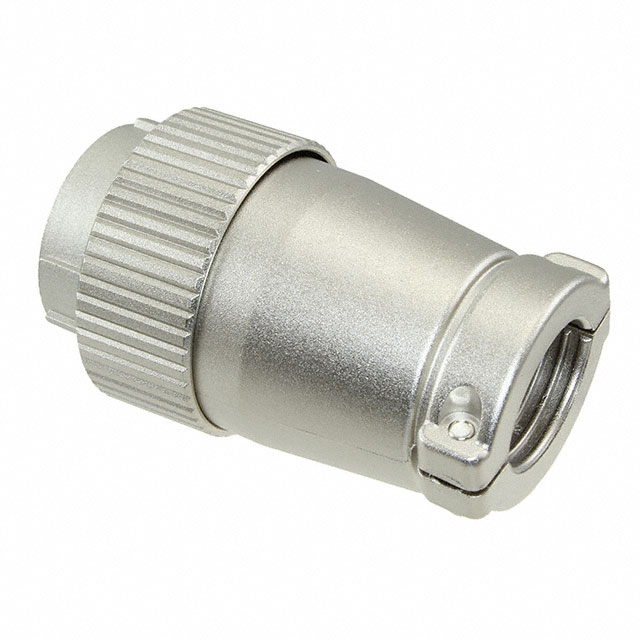

Hirose JR25PH-4S Image Image may be representation.
See specs for product details.

JR25PH-4S

Manufacturer Part Number : JR25PH-4S
RoHs Status : Lead free / RoHS Compliant
Manufacturer/Brand : Hirose
Stock Condition : In stock
Description : CONN PLUG FMALE 4POS SOLDER CUP
Ship From : Hong Kong
Datasheets : JR25PH-4S(1).pdfJR25PH-4S(2).pdfJR25PH-4S(3).pdf
Shipment Way : DHL/Fedex/TNT/UPS/EMS

Request Quote

Please complete all required fields with your contact information.Click "SUBMIT REQUEST" we will contact you shortly by email. Or Email us: Info@rxicsource.com.
Quantity
Target Price(USD)
Company Name:
Contact Name:
Your Email:
Phone:
Message:
Company Type:
  • Verify:
Part No. JR25PH-4S
Manufacturer Hirose
Description CONN PLUG FMALE 4POS SOLDER CUP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available In stock
Datasheets JR25PH-4S(1).pdfJR25PH-4S(2).pdfJR25PH-4S(3).pdf
Voltage Rating 1000VAC, 1400VDC
Termination Solder Cup
Shielding Unshielded
Shell Size, MIL -
Shell Size - Insert 25
Shell Material Aluminum Alloy
Shell Finish Nickel
Series JR
Packaging Bulk
Other Names 114-0627-5-00
H126265
JR25PH-4S-ND
Orientation Keyed
Operating Temperature -25°C ~ 85°C
Number of Positions 4
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insert Material Polyphenylene Sulfide (PPS)
Ingress Protection -
Features Backshell, Cable Clamp, Coupling Nut
Fastening Type Threaded
Detailed Description 4 Position Circular Connector Plug, Female Sockets Solder Cup Silver
Current Rating 30A
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Mating Silver
Connector Type Plug, Female Sockets
Color Silver
Cable Opening 0.709" (18.00mm)
Backshell Material, Plating Aluminum Alloy, Nickel
Applications -
